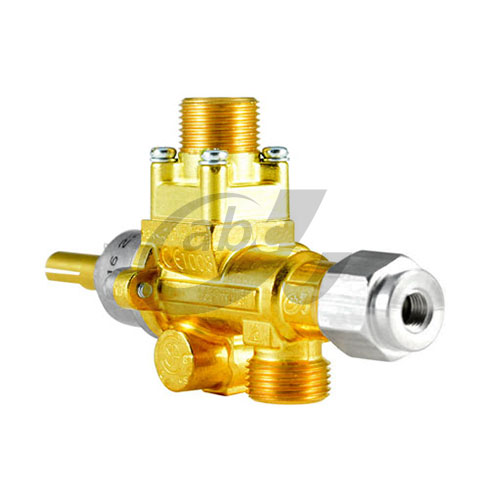

A62V Safety Valve

BTU 70,000
KW 20
MJ 73

Features
● The bypass screw is slotted for easy adjustment of low flame.
● Outlet adjustment screw is slotted for easy adjustment of flow rate.
● Pressure testing point design is convenient for outlet pressure testing.
● Outlet in vertical direction.
● Heavy forged brass construction with sturdy and leak-proof main body.

Specifications
Inlet
Spigot 3/8"PT or 1/2"PT
Outlet
Ø12mm tubing or 1/2"CC tubing
Pilot fitting
4mm or 6mm or 1/4"CC
Stem length
92.6mm
Max. operation pressure
65mbar or 1/2PSI
Ambient temperature
0°~125°C (257°F)
Dimensions

A62V Safety Valve Dimensions
