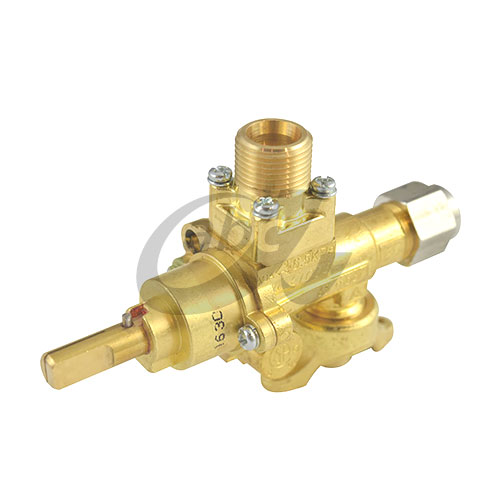

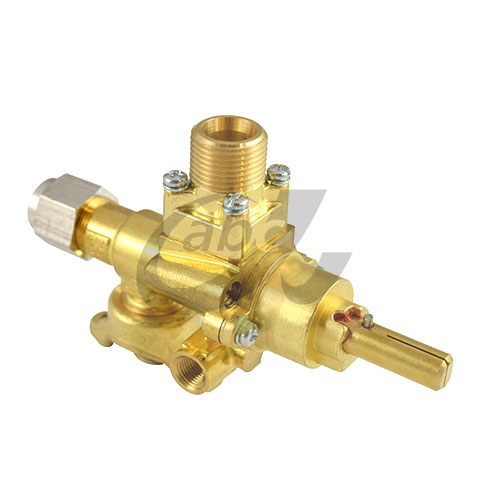

A62UV Safety Valve with Pilot

BTU 70,000
KW 21
MJ 75

Features
● U-mount inlet design allows quick and convenient installation on 3/4" gas piping.
● Slotted bypass adjustment screw allows convenient low-flame adjustment.
● Slotted outlet flow adjustment screw allows convenient adjustment of gas flow rate.
● Outlet pressure test port provides convenient access for downstream gas pressure measurement.
● Upward-facing outlet configuration provides an alternative piping arrangement for different appliance layouts.
● Heavy-duty forged brass body provides excellent strength and durability.

Specifications
Inlet
U-Mount for 3/4" Pipe
Outlet
Ø12 mm tubing / 1/2" CC tubing
Pilot Fitting
4 mm / 6 mm / 1/4" CC
Stem Length
92.6 mm
Maximum Operating Pressure
65 mbar or 1/2 psi
Ambient Temperature
0–125°C (32–257°F)

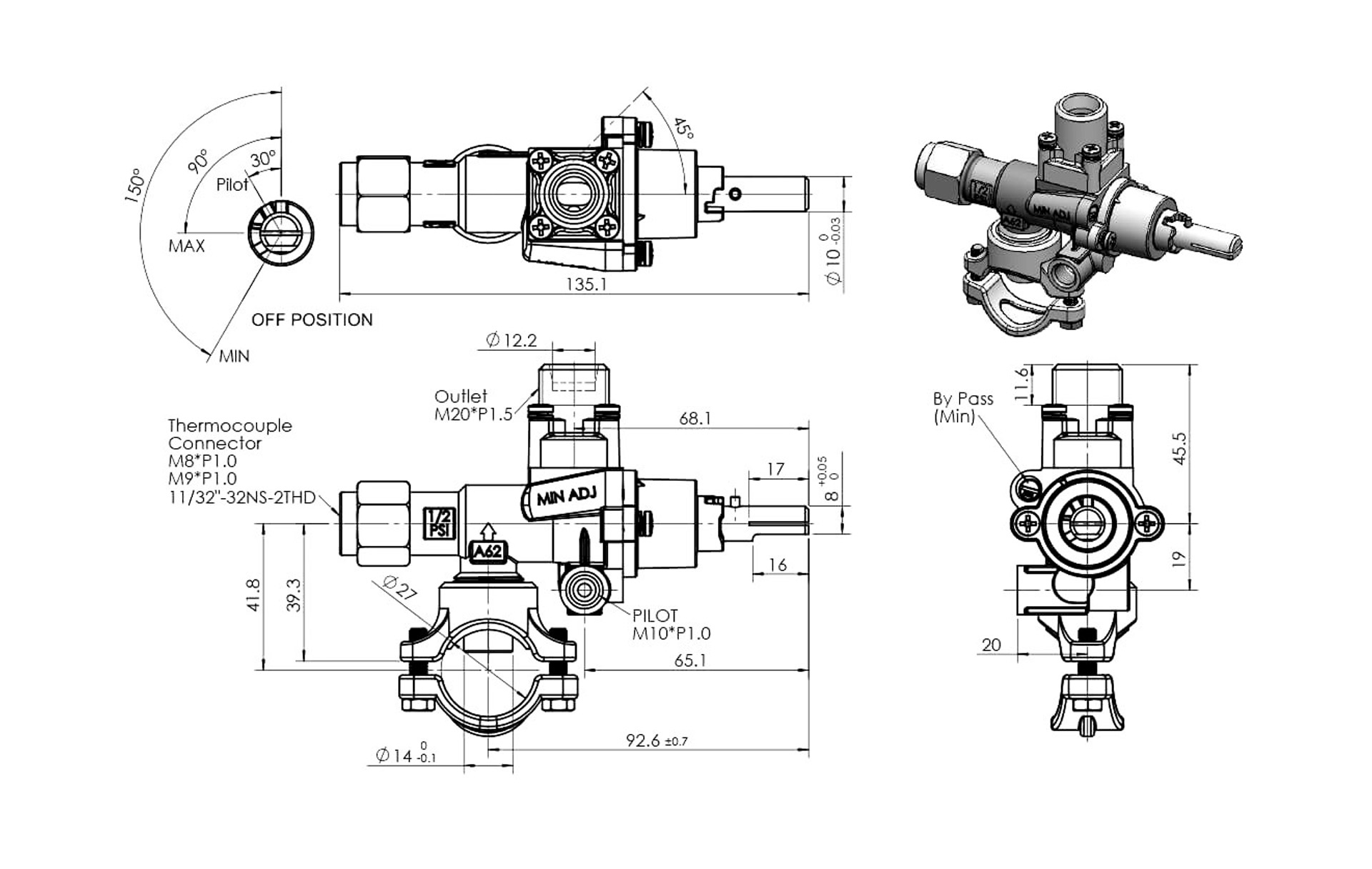

Dimensions

A62UV Safety Valve with Pilot Dimensions
