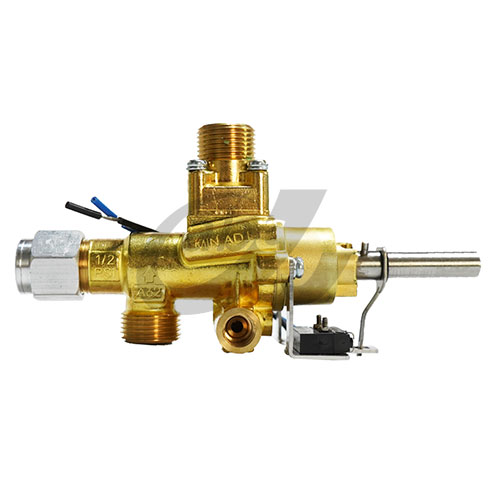

A62-L Safety Valve with Pilot and Auto-Ignition

BTU 70,000
KW 20
MJ 73

Features
● Built-in micro switch ignition provides convenient and intuitive ignition operation.
● Slotted bypass adjustment screw allows convenient low-flame adjustment.
● Slotted outlet flow adjustment screw allows convenient adjustment of gas flow rate.
● Outlet pressure test port provides convenient access for downstream gas pressure measurement.
● Heavy-duty forged brass body provides excellent strength and durability.

Specifications
Inlet
Spigot: 3/8" PT or 1/2" PT
Outlet
Ø12 mm tubing / 1/2" CC tubing
Pilot Fitting
4 mm / 6 mm / 1/4" CC
Stem Length
92.6 mm
Maximum Operating Pressure
65 mbar or 1/2 psi
Ambient Temperature
0–125°C (32–257°F)
Dimensions

A62-L Safety Valve with Pilot and Auto-Ignition Dimensions
