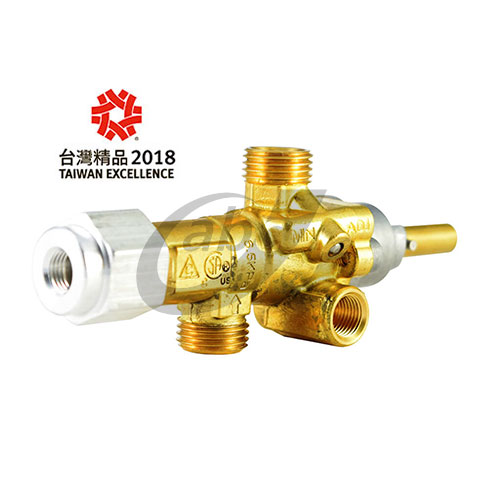

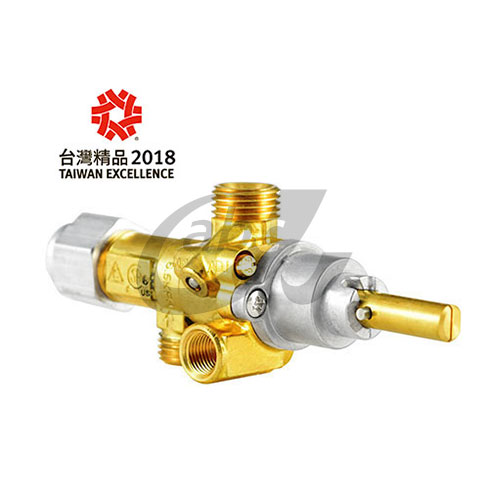

A60 Safety Valve with Pilot

BTU 43,000
KW 12
MJ 45

Features
● Slotted bypass adjustment screw allows convenient low-flame adjustment.
● Spigot-type inlet connection facilitates installation with a sleeve and nut.
● Heavy-duty forged brass body provides excellent strength and durability.
● Precision-machined valve body and stem help ensure reliable operation and consistent performance, while the refined external design integrates neatly with commercial cooking equipment.

Specifications
Inlet
Spigot / 1/4" PT / 1/4" NPT / 1/8" NPT
Outlet
Ø10 mm tubing / 3/8" CC tubing
Pilot Fitting
4 mm / 6 mm / 1/4" CC
Stem Length
77.4 mm
Maximum Operating Pressure
65 mbar or 1/2 psi
Ambient Temperature
0–125°C (32–257°F)
Dimensions

A60 Safety Valve with Pilot Dimensions
