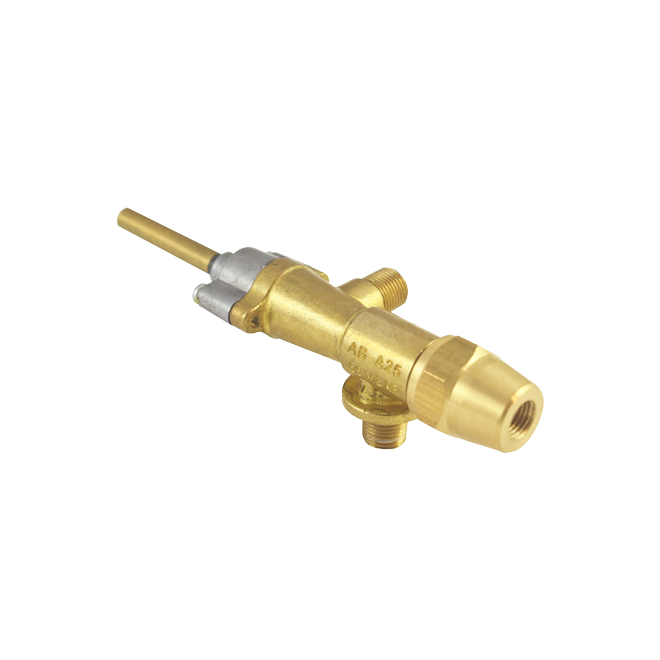

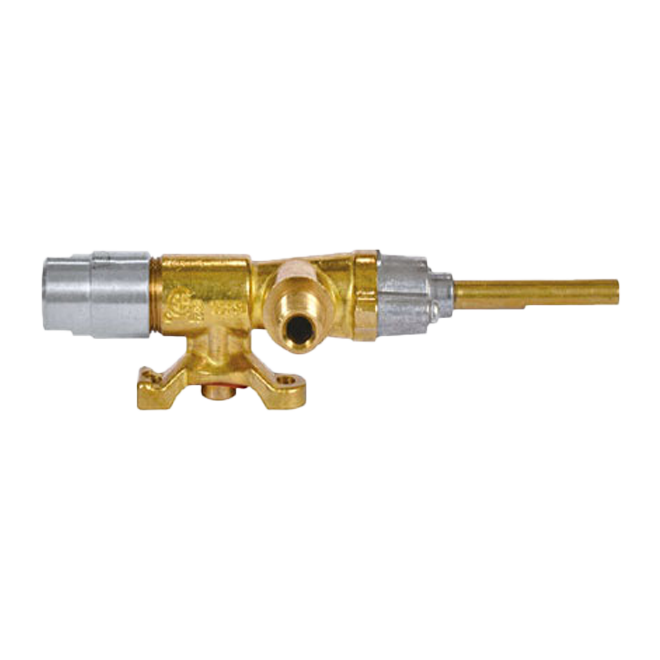

A25 Safety Valve without Pilot

BTU 15,000
KW 4
MJ 15

Features
● Compact design and saddle-mount inlet configuration allow quick installation while minimizing required installation space.
● Pilotless design with flame failure protection provides automatic gas shut-off when flame loss is detected.
● Heavy-duty forged brass body provides excellent strength and durability.

Specifications
Inlet
Saddle Mount for 1/2" Pipe
Outlet
1/8"-27 NPT
Stem Length
85 mm
Maximum Operating Pressure
65 mbar or 1/2 psi
Ambient Temperature
0–125°C (32–257°F)
Dimensions

A25 Safety Valve without Pilot Dimensions
