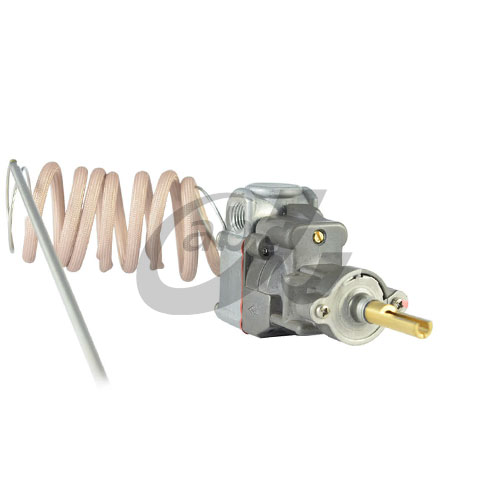

ABJ Gas Thermostat
| BTU | 82,000 |
| KW | 24 |
| MJ | 86 |
Features
● Flange-style inlet configuration allows convenient installation and integration into different appliance designs.
● Slotted bypass adjustment screw allows convenient low-flame adjustment, helping maintain stable temperature control.
● Four selectable outlet orientations provide greater flexibility for different appliance piping and installation layouts.
Specifications
Inlet
1/8"-27 NPT / 1/4"-18 NPT / 9/16"-27 NS-Taper
Outlet
1/4" NPT / 3/8" NPT / 7/16" Tubing
Bulb Diameter
Ø4.5 mm / Ø5.3 mm / Ø8 mm
Capillary Length
24" / 36" / 48"
Temperature Range
65–200°C / 100–260°C / 80–300°C
150–400°F / 200–500°F / 200–550°F
150–400°F / 200–500°F / 200–550°F
Stem Flat Position at OFF
6 O'clock / 12 O'clock
Maximum Operating Pressure
65 mbar or 1/2 psi
Ambient Temperature
0–125°C (32–257°F)

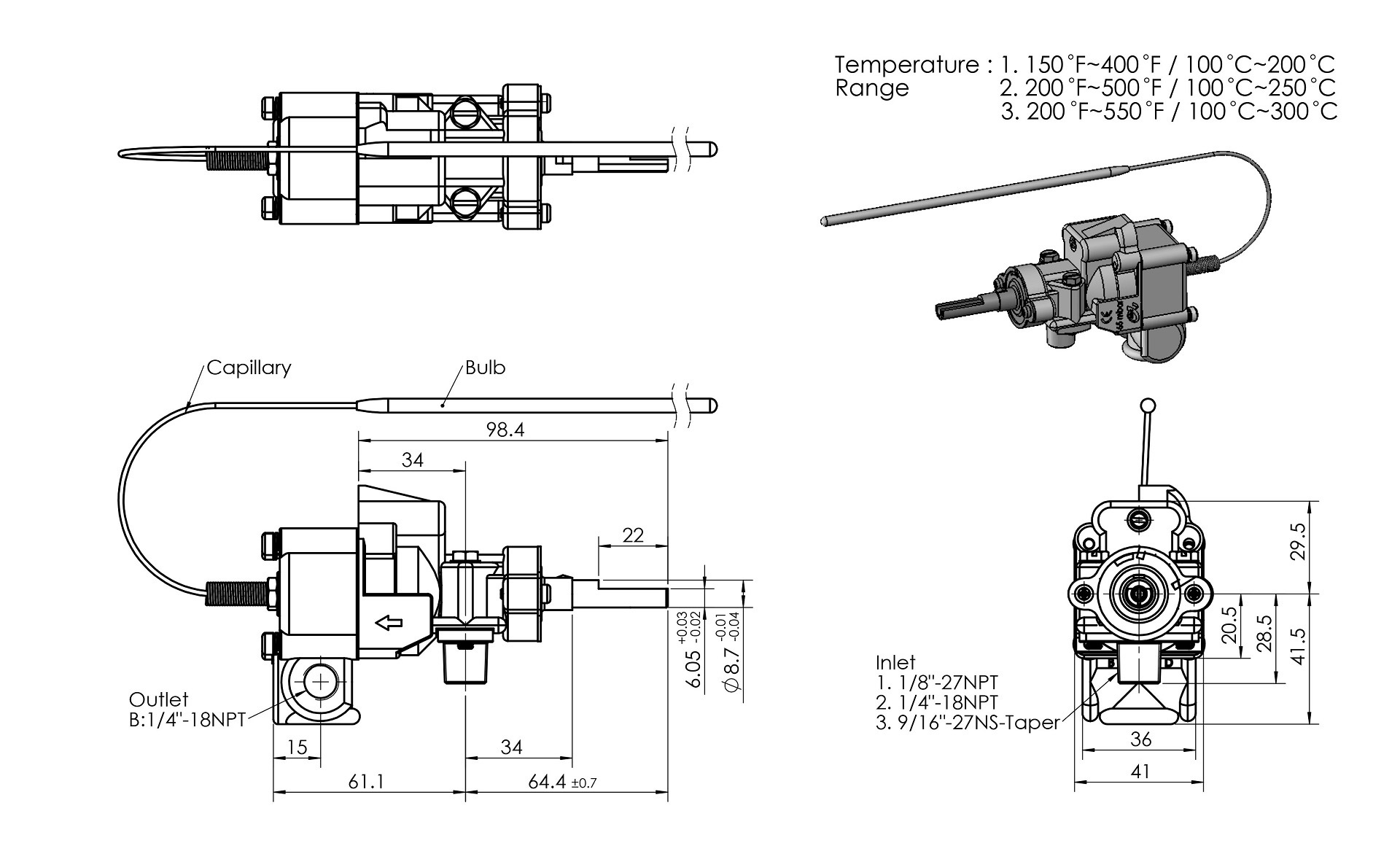

Dimensions
