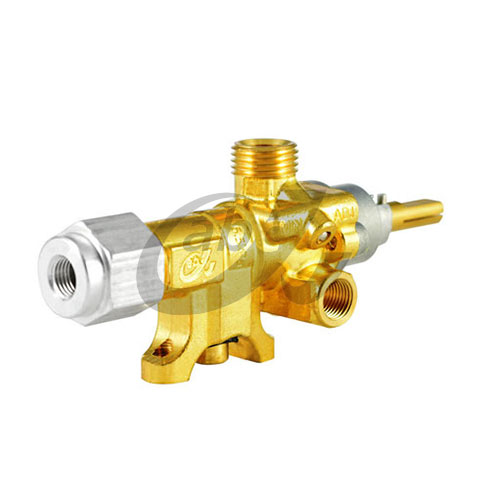

A60S Safety Valve with Pilot

BTU 43,000
KW 12
MJ 45

Features
● Slotted bypass adjustment screw allows convenient low-flame adjustment.
● Saddle-mount inlet design allows quick and convenient installation on 1/2" gas pipes.
● Heavy-duty forged brass body provides excellent strength and durability.

Specifications
Inlet
Saddle Mount for 1/2" Pipe
Outlet
Ø10 mm tubing / 3/8" CC tubing
Pilot Fitting
4 mm / 6 mm / 1/4" CC
Stem Length
77.4 mm
Maximum Operating Pressure
65 mbar or 1/2 psi
Ambient Temperature
0–125°C (32–257°F)
Dimensions

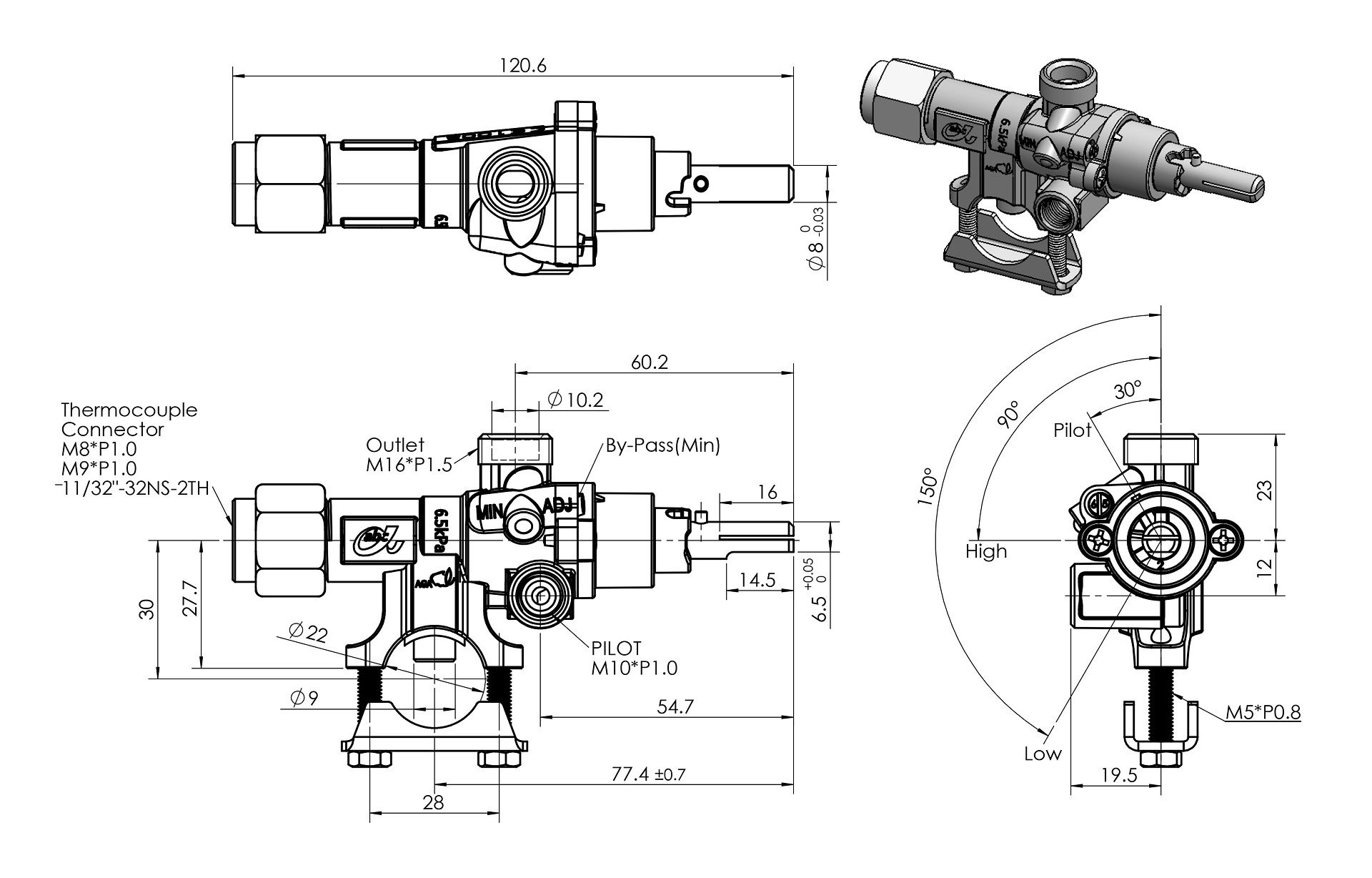

A60S Safety Valve with Pilot Dimensions
