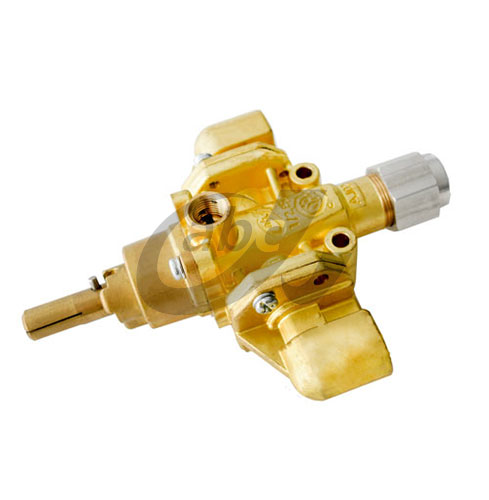

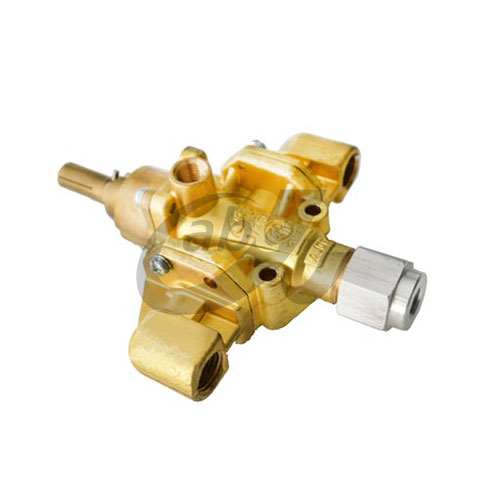

AJ02 Safety Valve with Pilot

BTU 70,000
KW 20.5
MJ 74

Features
● Dual-outlet design allows simultaneous gas control for the inner and outer rings of the JPC08 Dual-Ring Burner.
● A single control knob provides five-stage flame control for the inner and outer burner rings, offering flexible heat settings for different cooking requirements.
● Integrated flame failure protection automatically shuts off the gas supply if the pilot flame is extinguished, enhancing operational safety.
● Designed for use with the Alpha Brass JPC08 Dual-Ring Burner.
● Patented in Japan, Taiwan, and China.
● Heavy-duty forged brass body provides excellent strength and durability.

Specifications
Inlet
1/4"-18 NPT
Outlets (2)
1/4"-18 NPT
Pilot Fitting
4 mm / 6 mm / 1/4" CC
Maximum Operating Pressure
65 mbar or 1/2 psi
Ambient Temperature
0–125°C (32–257°F)
Dimensions

AJ02 Safety Valve with Pilot Dimensions
