ALCH High-Limit Switch (Manual Reset)
Features
● Proven safety control designed for commercial cooking equipment requiring over-temperature protection.
● Manual-reset design requires intentional reset after an over-temperature trip.
● Two mounting orientations are available for flexible installation.
● Calibrated temperature settings available from 340°F to 600°F (170°C to 316°C) in 5°F increments.
● Designed to open the appliance electrical circuit when the sensed temperature reaches the calibrated limit setting.
Specifications
Electrical Rating
1 A, 125 VAC / 25 A, 250 VAC
Bulb Diameter
Ø4.5, Ø5.3, Ø8 mm
Capillary Length
24", 36", 48"
Stuffing Box
None / 1/4"-18 NPT / 3/8"-18 NPT
Ambient Temperature
-20–85°C (-4–185°F)

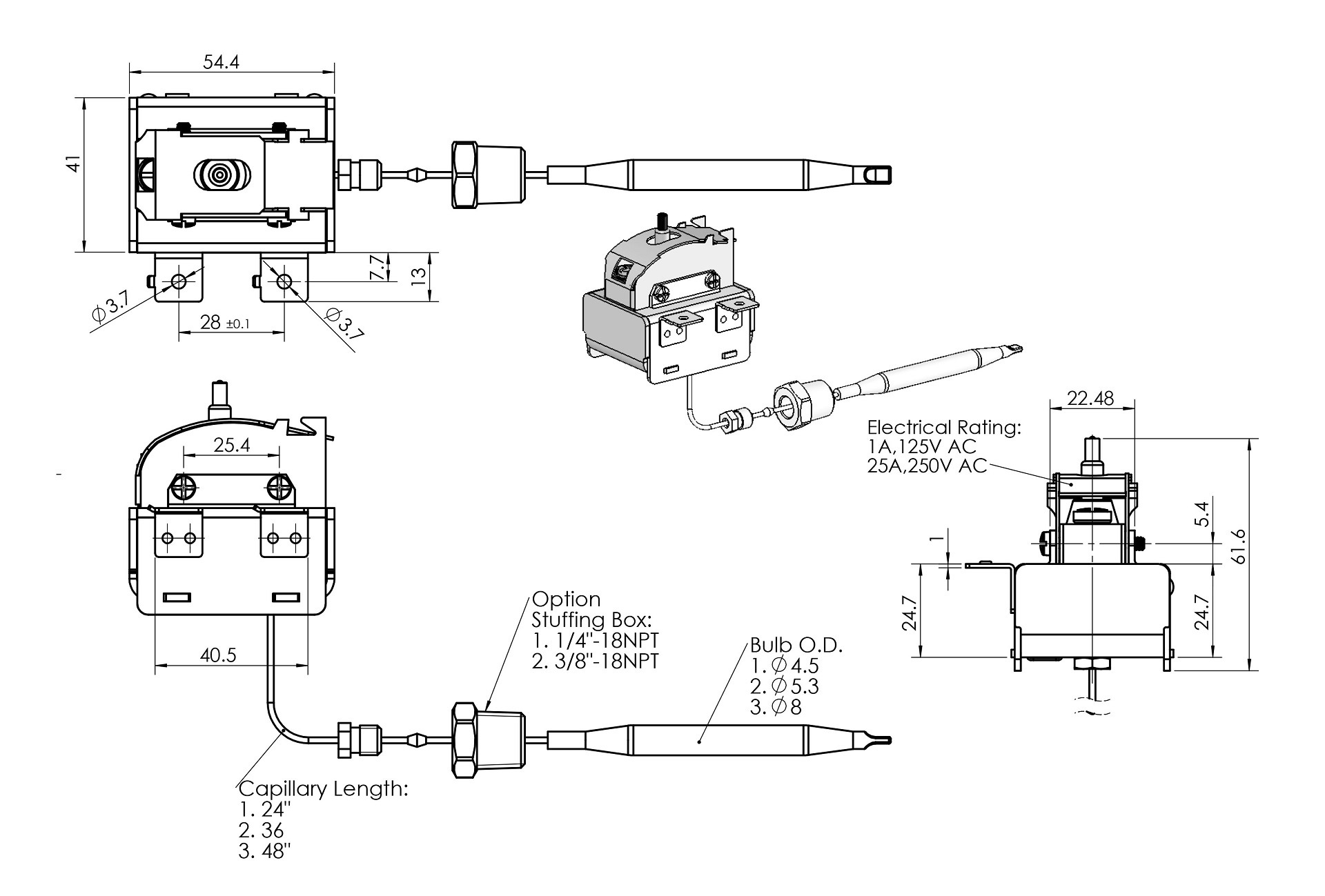

Dimensions
