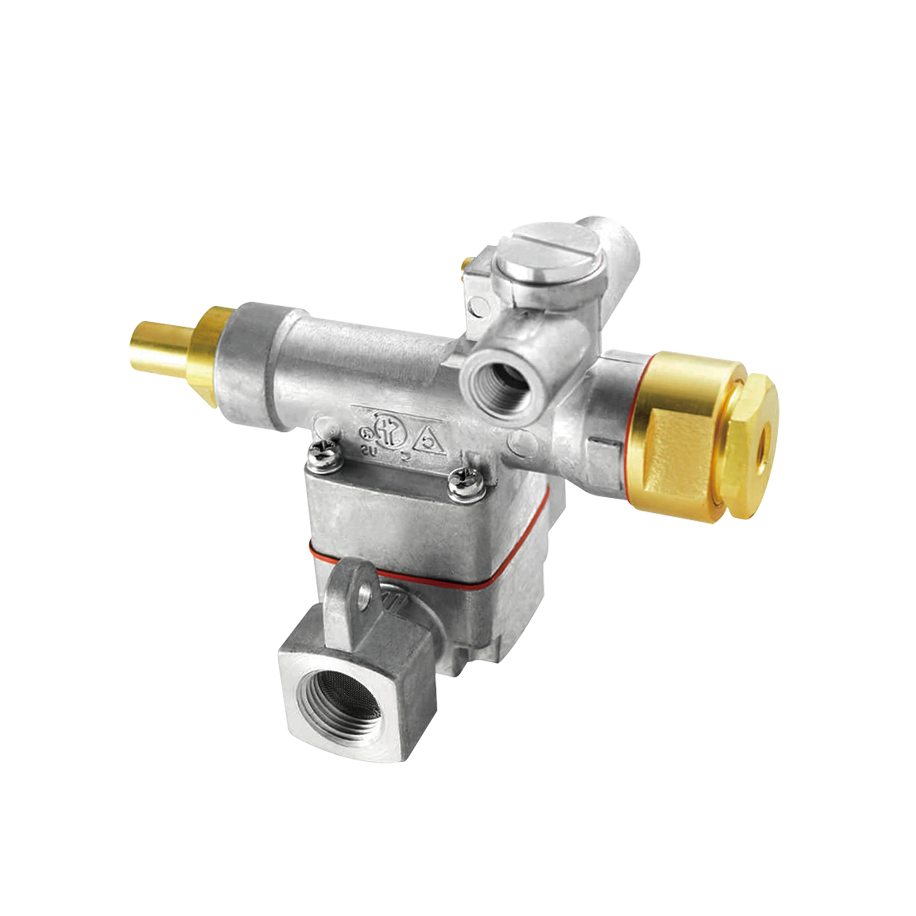

ATS-11 Safety Valve with Pilot
| BTU | 80,000 |
| KW | 23 |
| MJ | 84 |
Features
● Compatible with Alpha Brass models such as the ABJ and AG thermostat.
● Internal/external pilot gas supply are available as options. K type is pilot outlet only, J type is with separate pilot inlet/outlet tube connections.
Specifications
Inlet
1/4"NPT or 3/8" NPT
Outlet
1/4"NPT or 3/8" NPT
Pilot Inlet/Outlet
1/8" NPT or 7/16-24UNS
Max. operation pressure
65mbar or 1/2PSI
Ambient temperature
0°~120°C (248°F)
Dimensions
